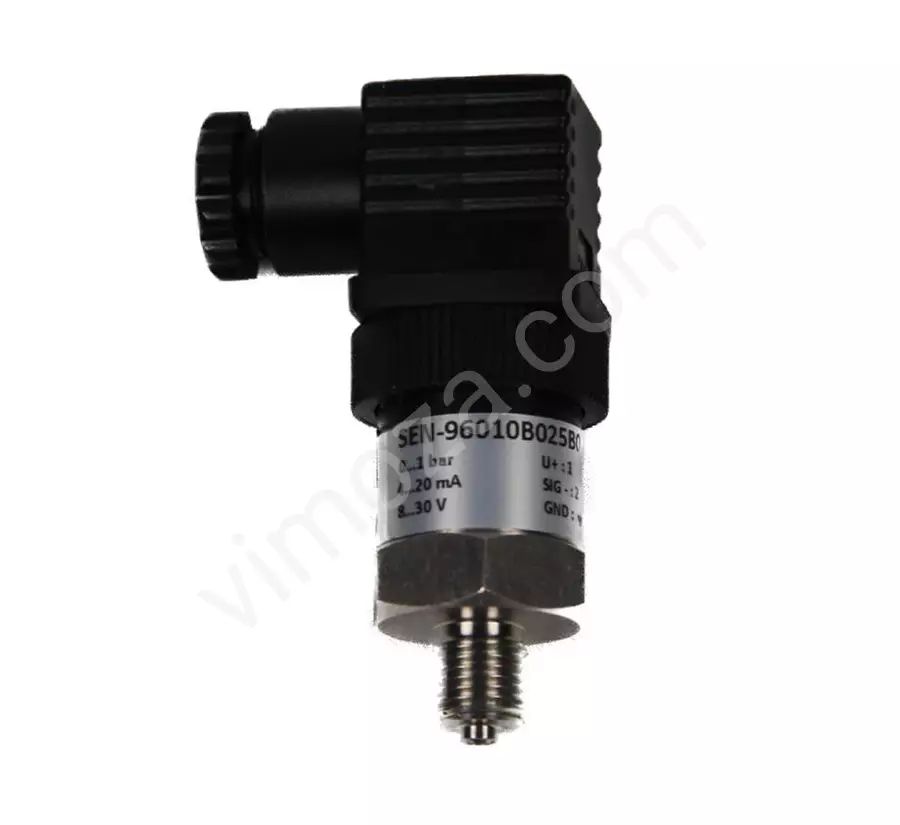

SEN96 Series Pressure Sensor
Ask for Price
Türkiye / İstanbul / Beşiktaş
| Ad No | 742870657 |
|---|---|
| Ad Date | 29 May 2025 |
| Category | Pressure gauge |
| Brand | KOBOLD |
The KOBOLD SEN-96 series pressure sensor features a ceramic measuring cell and is used for pressure measurement of air, industrial gases, water, and non-corrosive liquids. Thanks to its compact design, our product offers an economical solution and is also preferred for stock sales.
Brand | KOBOLD |
Model code | SEN96 |
Measuring range | -1…+1600 bar (select from brochure) |
Process connection | G 1/4” male thread |
Process temperature | -25…85 C |
Body material | stainless steel 1.4404 / 316L |
Electrical connection | DIN 43650 A Valve socket |
Measuring cell | Ceramic |
Accuracy class | %0.5 F.S. |
Protection class | IP65 |
Power supply | 8….30 VDC |
Output signal | 4…20 mA (2-wire) |
