MVVS Vacuum Sensor
Ask for Price
Türkiye / İstanbul / Beşiktaş
| Ad No | 928791344 |
|---|---|
| Ad Date | 29 May 2025 |
| Category | Pressure gauge |
| Brand | MV INSTRUMENTS |

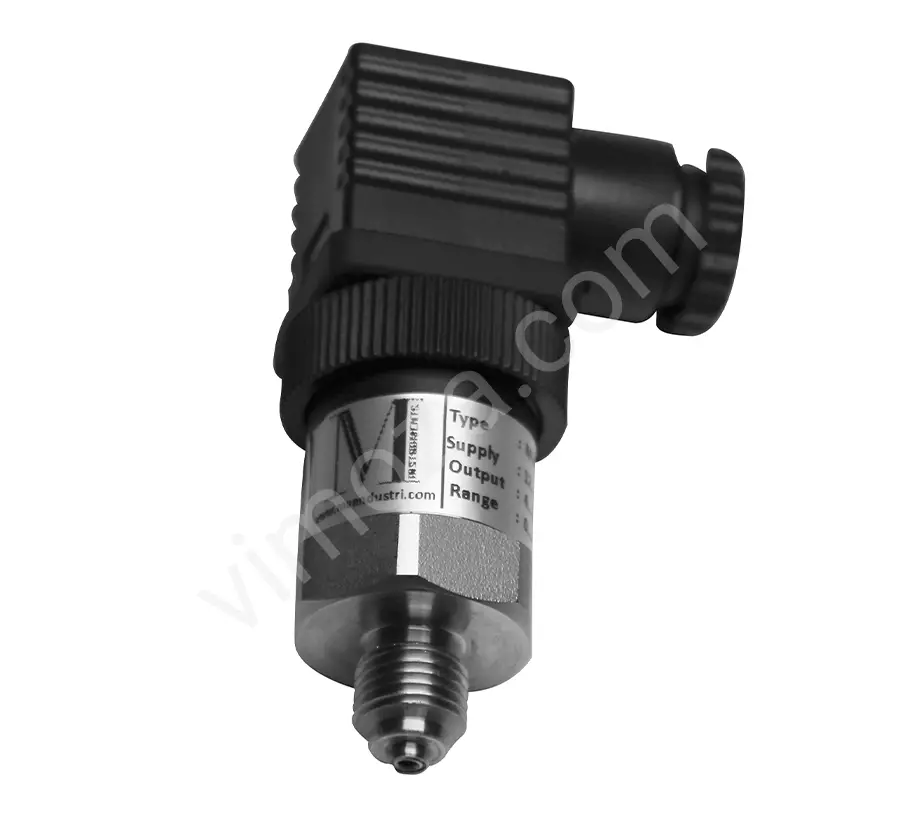

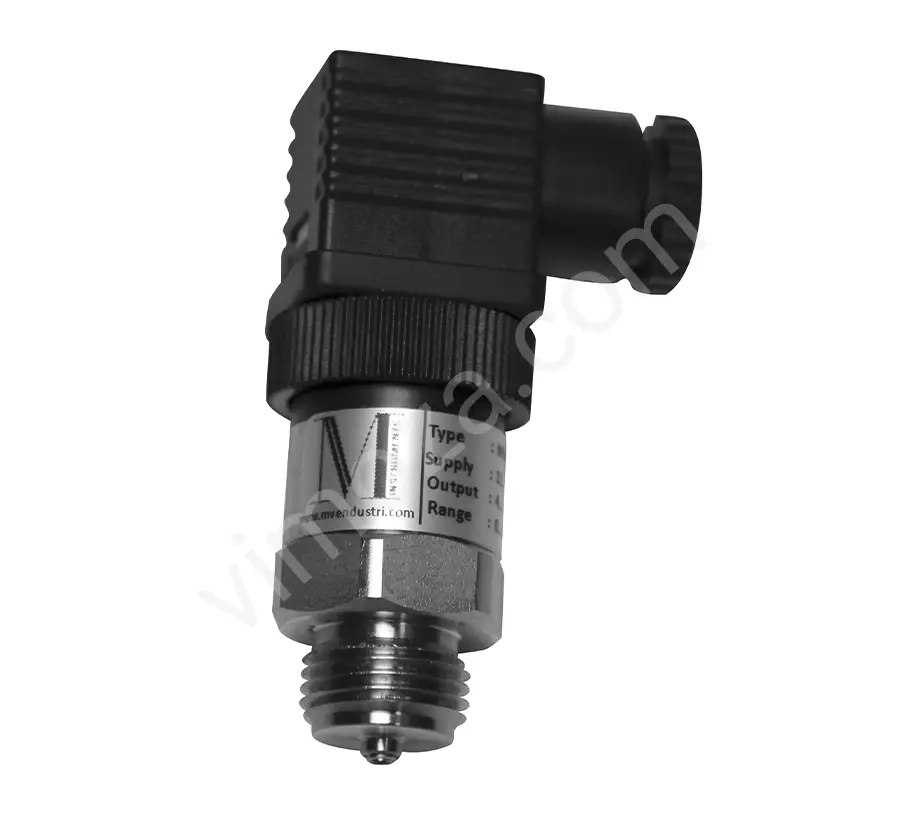

The MVVS series vacuum sensor features a ceramic measuring cell and is used for vacuum measurement of air, industrial gases, water, and non-corrosive liquids. Thanks to its compact design, our product offers an easy and trouble-free solution and is also preferred for its economical price.
Brand | MV INSTRUMENTS |
Measuring range | 0…1 bar 0… 20 bar / -1…0 bar -1…+20 bar |
Measurement accuracy | +/- 0.5% (of full scale value) |
Process temperature | -20…+80 °C |
Sensor material | Ceramic Al203 |
Body material | 1.4401 (316) stainless steel |
Seal material | FPM |
Process connection | G 1/4” / G 1/2” male thread |
Output signal | 4…20 mA , / 0…10 V (selectable) |
Supply voltage | 12…30 VDC |
Protection class | IP65 |
