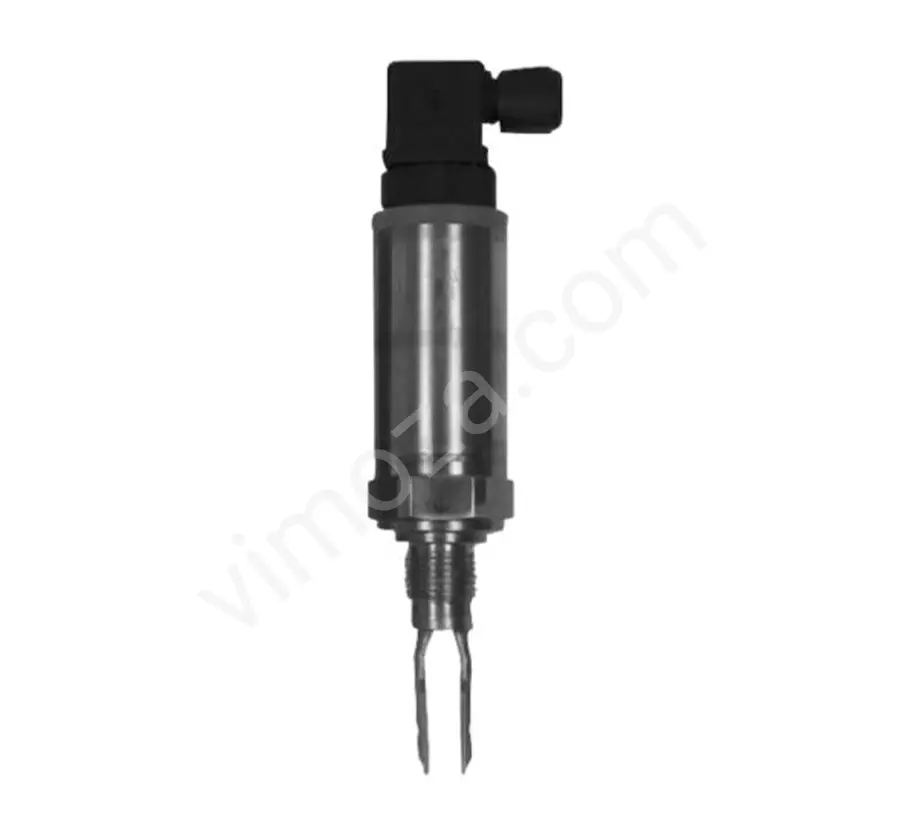

MVVF 40 mm NPN,PNP SPDT Vibrating Fork Level Switch.
Ad No | 1333549902 |
---|---|
Ad Date | 29 May 2025 |
Category | Level Gauge |
Brand | MV INSTRUMENTS |
Product Features
The MVVF Series Vibrating Fork Type Level Switch consists of a piezoelectric tuning fork component that produces vibration on the fork
and a unit that sends a signal by measuring the frequency of this vibration.
When the fork comes into contact with the measured material, the vibration frequency changes.
When the electronic unit detects the change in the frequency signal, it converts this data into a signal output.
Application area | In non-aggressive liquids | Environmental vibration level | According to V.L. 4 standard |
Product density | ≥ 0.7 g/cm3 | Process connection | G ½” thread |
Product viscosity | < 1000 mm2/s | Fork length | 40 mm |
Process pressure | max 10 barg | Electrical connection | M12 socket / DIN socket |
Process temperature | -30…+100 °C | Supply voltage | 24 VDC / 220 VAC |
Ambient temperature | -20… +80 °C | Output signal | PNP/NPN transistor or SPDT Relay |
Ambient humidity | ≤ 95% RH | Power consumption | ≤ 2 W |
Fork material | 316L stainless steel | Protection class | IP65 |
Body material | 304 stainless steel | ATEX Class |
