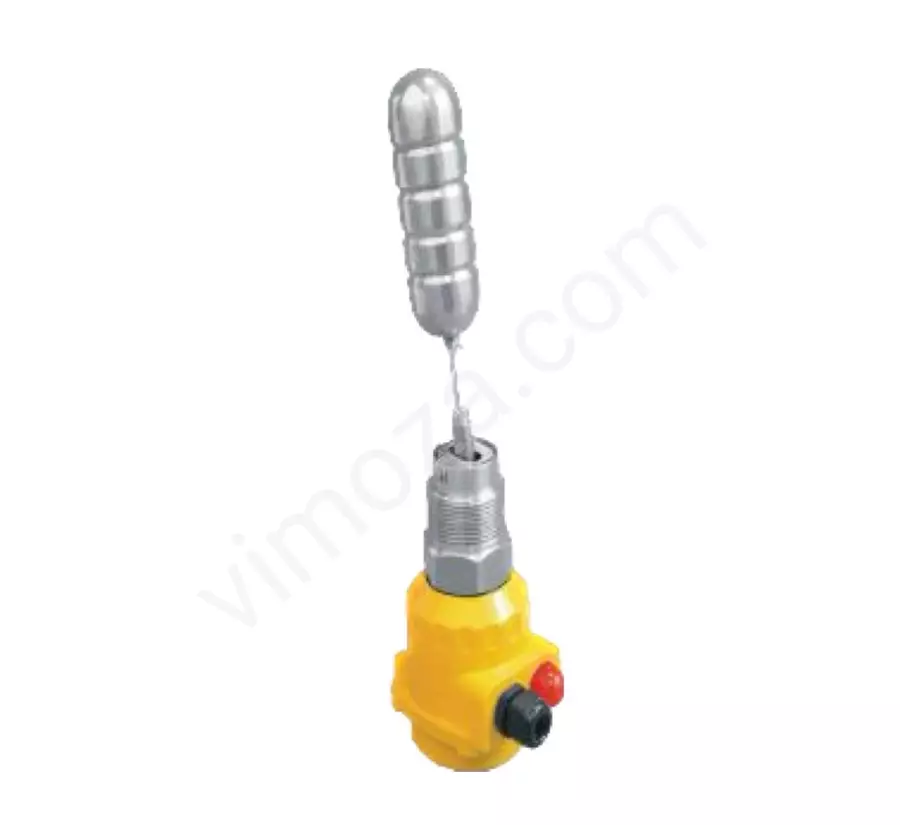

LS1002 Float Level Switch
Ask for Price
Türkiye / İstanbul / Beşiktaş
| Ad No | 2000729613 |
|---|---|
| Ad Date | 29 May 2025 |
| Category | Level Gauge |
| Brand | EMA |
The LS1002 series side-mounted float level switch is used for limit level measurements of water, oil, chemicals, and other industrial liquids in standard process applications and high temperature and pressure process applications.
Brand | EMA |
Model code | LS1002 |
Signal output | NO/NC SPDT Contact |
Power connection | 19…60 VDC / 14…250 VAC |
Ambient temperature | -25…70 °C |
Process temperature | -20…200 °C |
Process pressure | Max. 10 bar |
Body material | Stainless steel |
Process connection | G 1 ½" male thread |
Electrical connection | M20x1.5 gland |
Protection class | IP 67 |
